JHDS-021 Courtyard Lighting for Outdoor places with IP65 Waterproof Grade

Short Description:

This LED courtyard light fixture has a die-cast aluminum body and a high-temperature paint and mat sanding process on the surface, bring a sense of luxury. It Equipped with high-quality LED light modules, and Soft lighting effect. It can meet customers’ energy-saving and power-saving needs.

We use energy saving, high efficiency, long lifespan and easy installation light source, that is an LED module.The rated power can reach 30-60 watts, which can meet most lighting needs. We can customize the watts of the light source as you like.

Send email to us

Product Detail

Product Tags

Product Description

Day

Night

● We use never rust high quality aluminum material for lamp housing with the pure polyester electrostatic spraying to the surface to the lamp.

● The internal reflector made by high-purity alumina oxide to anti glare. The color of milky white and transparent cover made PS or PC with good light conductivity and no glare due to light diffusion. And the injection molding process used to the cover.

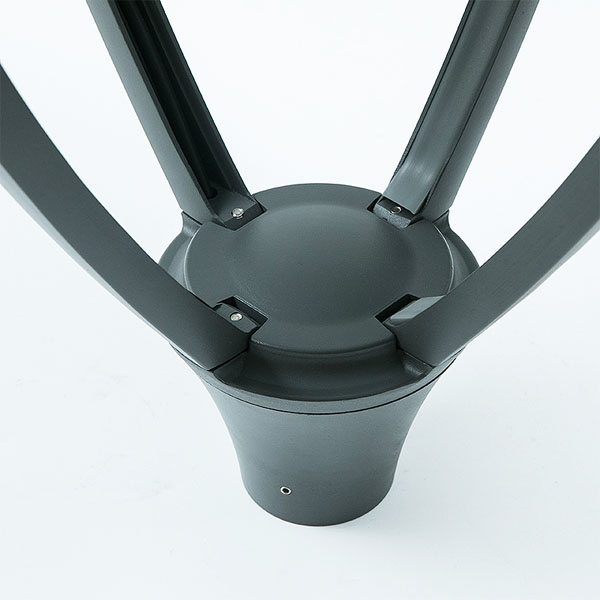

●There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source. And our manufacturer sells directly, with excellent design and can also process and customize.versified services are awaiting for your inquiry.

●All the stainless steel fasteners used to the whole lamp to anti corrode. Waterproof grade can reach IP65 after professional testing.

● Our garden light widely use to various outdoor places like squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths to make the outdoor places more beautiful.

Technical parameters

Technical Details:
Model No.:	JHDS-021
Dimension(mm):	Φ450MM*H480MM
Shade Material:	High pressure die-casting aluminum
Transparent cover Material:	PS or PC
Rated Power(w):	30W 60W
Color temperature(k):	2700-6500K
Luminous Flux(lm):	3300LM 6600LM
Input Voltage(v):	AC85-265V
Frequency range(HZ):	50/60HZ
Factor of Power:	PF> 0.9
Rendering Index of Color：	> 70
Working Temperature：	-40℃-60℃
Working humidity：	10-90%
LED Life(h)：	>50000H
Waterproof Grade：	IP65
Install Diameter(mm)：	Φ60 Φ76mm
Applicable Lamp Pole(m)：	3-4m
Packing Size(mm)：	450450350MM
N.W.(KGS)：	5.0
G.W.(KGS)：	6.0

Colors and Coating

In addition to these parameters, JHDS-021Courtyard Lighting for Outdoor places with IP65 Waterproof Grade is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
