JHTY-9002 Led Outdoor Garden Lights and Solar Garden Light for Countryard

Short Description:

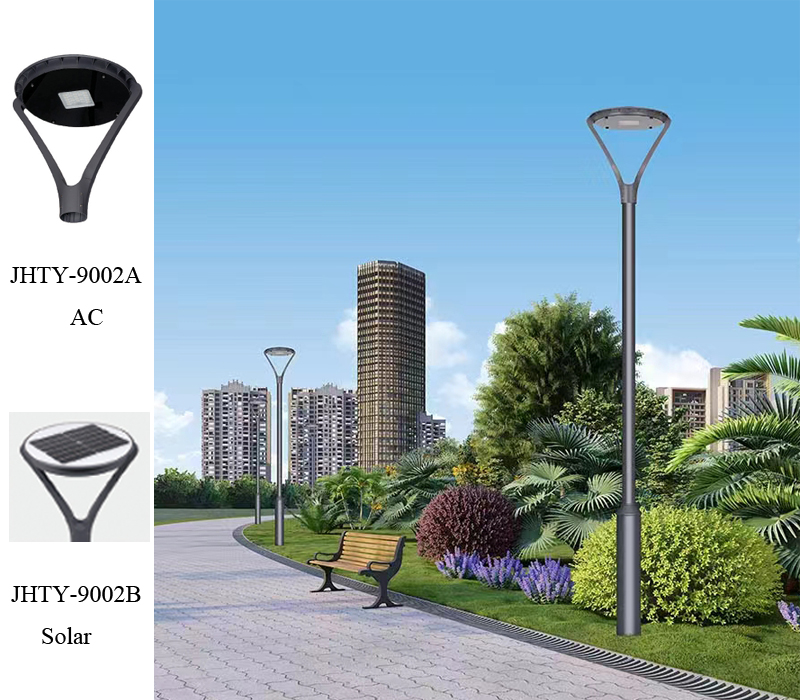

JHTY-9002 is also designed two types, A and B,  A is to use electricity and B is use solar panel.  JHTY-9002B has equipped with advanced solar panel technology and high-capacity rechargeable batteries, this light can harness solar energy efficiently during the day and provide ample illumination throughout the night.

JHTY-9002B to use LED light source, has the following advantages compared to traditional light sources: long lifespan, short startup time, firm structure, and as a all solid structure, it can withstand strong oscillations and impacts.

Both of them are energy saving, ECO and easy install and maintenance.


Product Detail

Product Tags

Product Description

Day

Night

 Both of the lamp housing of JHTY-9002A and JHTY-9002B are all use high-quality die-cast aluminum and the transparent cover made by PC or PS, with good light conductivity and no glare due to light diffusion with Injection molding process. The surface treatment with powder coating to anti-corrosion.



 The light source can be driven by LED modules and chips from well-known brands. Selected high-quality LED chips. High efficiency 3030 chip. The warranty can be 3 or 5 years.

●  The LED module light source with the advantages of easy maintain, lower cost ,easy installation and long lifespan. Normal watts 6-20w for solar panel garden light and 30w -60w for AC garden light which can meet most lighting needs.

 The parameters of JHTY-9002B solar panel one are 5v/20w, the capacity of the 3.2V lithium iron phosphate battery is 20ah, and the color rendering index is>70. And control method is time control and light control.



 The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source



 This product can both decorate the night and illuminate the road, bringing a sense of safety to pedestrians. It can be used in outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths, etc.



JHTY-9002B

Technical parameters

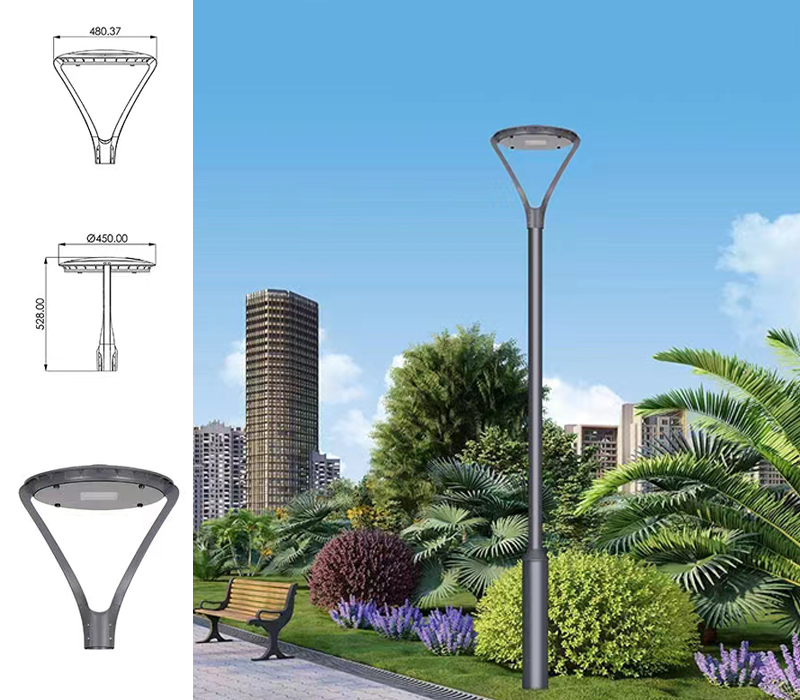

Product Parameters of AC Garden Light JHTY-9002A

Product Code

           JHTY-9002A

Dimension

Φ490mm*H500mm

Housing Material

High pressure die-casting aluminum

Cover Material

 PC

Wattage

30W- 60

Color temperature

2700-6500K

Luminous Flux

3600LM/7200LM

Input  Voltage

AC85-265V

Frequency range

50/60HZ

Power factor

PF> 0.9

Color Rendering Index

> 70

Working Temperature

 -40℃-60℃

Working  humidity

10-90%

Life Time

> 50000 hours

Certificates

CE  ROHS IP65  ISO9001

Installation Spigot Size

60mm  76mm

Applicable Height

3m -4m

Packing

510*510*520MM/ 1 unit

Net weight(kgs)

6.6

Gross Weight(kgs)

7.6

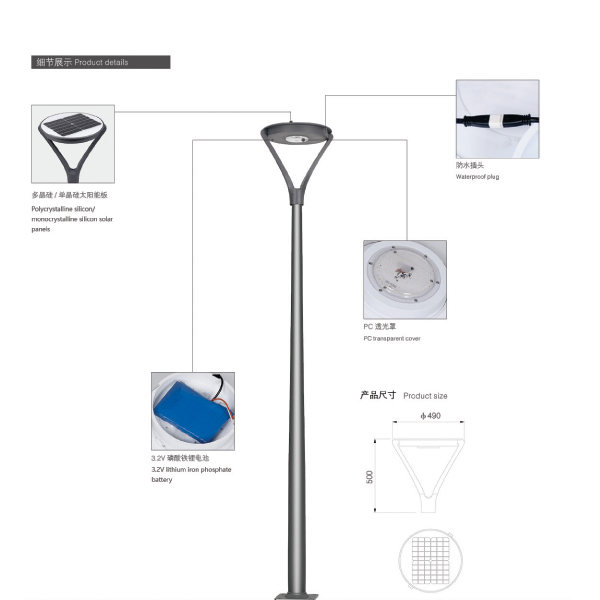

Technical parameters of Solar Panel Garden Light JHTY-9002B

Model:

JHTY-9002B

Dimension:

W490*H500MM

Fixture Material:

High pressure die-casting aluminum lamp body

Lamp Shade Material:

 PC

Solar Panel Capacity:

5v/20w

Color Rendering Index:

> 70

Battery Capacity:

3.2v lithium iron phosphate battery 20ah

Lighting Time:

Highlighting for the first 4 hours and intelligent control after 4 hours

Control method:

Time control and light control

Luminous Flux:

100LM  / W

Color temperature:

3000-6000K

Install Sleeve Diameter:

Φ60   Φ76mm

Certificates:

CE  ROHS  IP65  ISO9001

Applicable Lamp Pole:

3-4m

Installation Distance:

10m-15m

Packing Size:

510*510*520MM

Net weight(KGS):

6.6

Gross Weight(KGS):

7.6

Colors and Coating

In addition to these parameters, he JHTY-9002A AC LED garden light and JHTY-9002B LED Solar Garden Light  is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (1)

Gray

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (2)

Black

CPD-12 High Quality Aluminium IP65 Lawn Lights for Park Light (3)

Certificates

CE
ROHS
JHTY-9002专利证书1

Factory Tour

Factory Tour (24)
Factory Tour (26)
装配车间场景
Factory Tour (15)
Factory Tour (3)

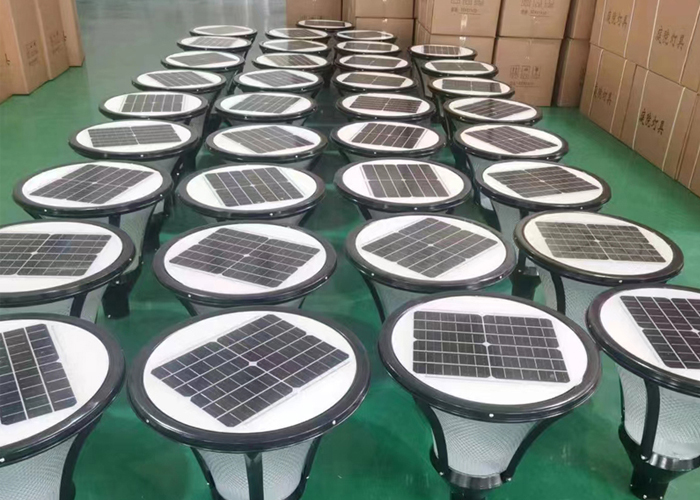

产品场景图7
