TYDT-6 LED Outdoor Garden Light with IP65 and CE Certificate

Short Description:

We designed a new outdoor garden light recently, it is an ideal parking lots, buildings, and general outdoor lighting. The garden light is equipped with a high-quality aluminum shell, with an IP 65 waterproof and dust proof rating and also achieved the CE certificate.

This garden light has as two installation methods, it easy to install and is fixed to the lamp pole with a small amount of and long enough bolts. Maintenance is also very convenient, just manually open the top cover and do not need to completely remove it.

Send email to us

Product Detail

Product Tags

Product Description

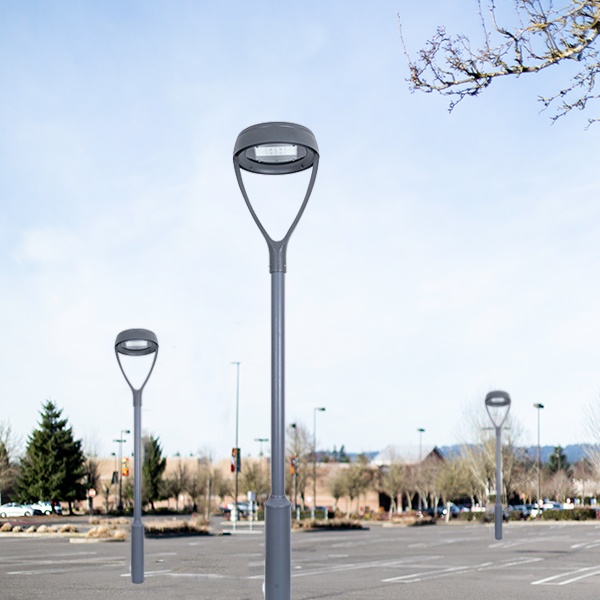

Day

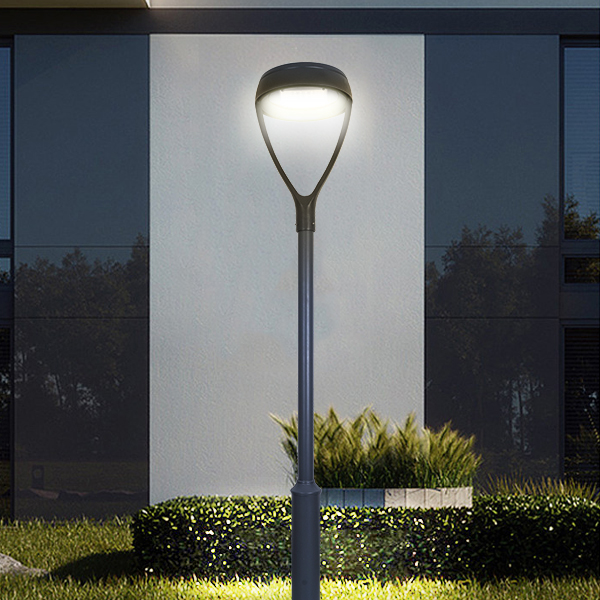

Night

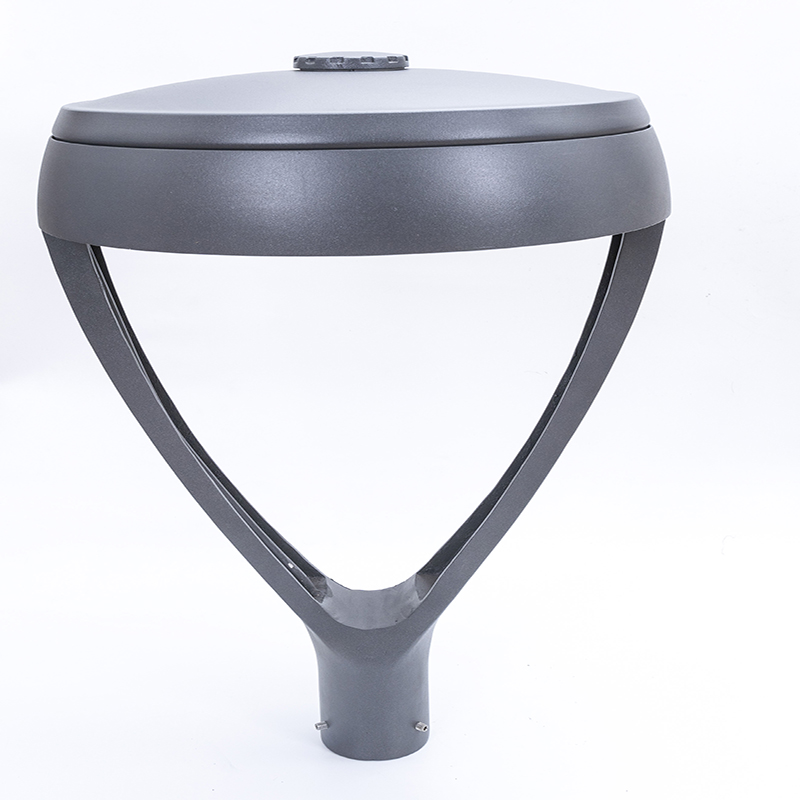

● The lamp shell made of die-casting aluminum match a high-purity alumina internal reflector which can effectively prevent glare. The surface treatment of the lamp to do pure polyester electrostatic spraying to effectively prevent corrosion.

● The material of the transparent cover made of PC or PS, the color is milky white. And the decorative parts is aluminum, with embossing technology.

● We use internationally brand drivers for the LED light source with the rated power from 30 to 60w. Of course the rated power can be customized. It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w.

●The entire lamp adopts stainless steel fasteners, which are not easy to corrode. The lamp equip with a heat dissipation device on the top and outside of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● Many outdoor places like squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths to use this kind of garden lamp.

Technical parameters

Product Parameters
Product No.	TYDT-5
Dimension(mm)	Φ300mm*H490mm
Material of Lamp Housing	High pressure die-casting aluminum
Material of Cover	Aluminum
Wattage(w)	30W- 60W
Color temperature(k)	2700-6500K
Luminous Flux(lm)	3300LM/6600LM
Input Voltage(v)	AC85-265V
Frequency range(HZ)	50/60HZ
Factor of Power	PF> 0.9
Rendering Index of Color	> 70
Temperature of Working	-40℃-60℃
Humidity of Working	10-90%
Life Time(h)	50000 hours
IP Rating	IP66
Installation Spigot Size(mm)	60mm 76mm
Applicable Height(m)	3m -4m
Packing (mm)	310310500MM/ 1 unit
N.W(kgs)	5.56
G.W(kgs)	6.1

Colors and Coating

In addition to these parameters, the TYDT-5 LED Outdoor Garden Light with IP65 and CE Certificate is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
