JHTY-8060 Professional waterproof outdoor LED courtyard light

Short Description:

The overall design of this lamp is triangular, small and exquisite, with a unique and concise design. Made of high-quality die-cast aluminum – A DC 12. Provide quality assurance for LED courtyard lights.

The light source is an LED module, which has the advantages of energy conservation, environmental protection, high efficiency, convenient installation, and a rated power of up to 30-60 watt. And more wattage requirements can be customized.Drive well-known brands such as MW and PHILIPS. The waterproof level has been professionally tested to reach IP65.

It can use outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, city walkways.

Send email to us

Product Detail

Product Tags

Product Description

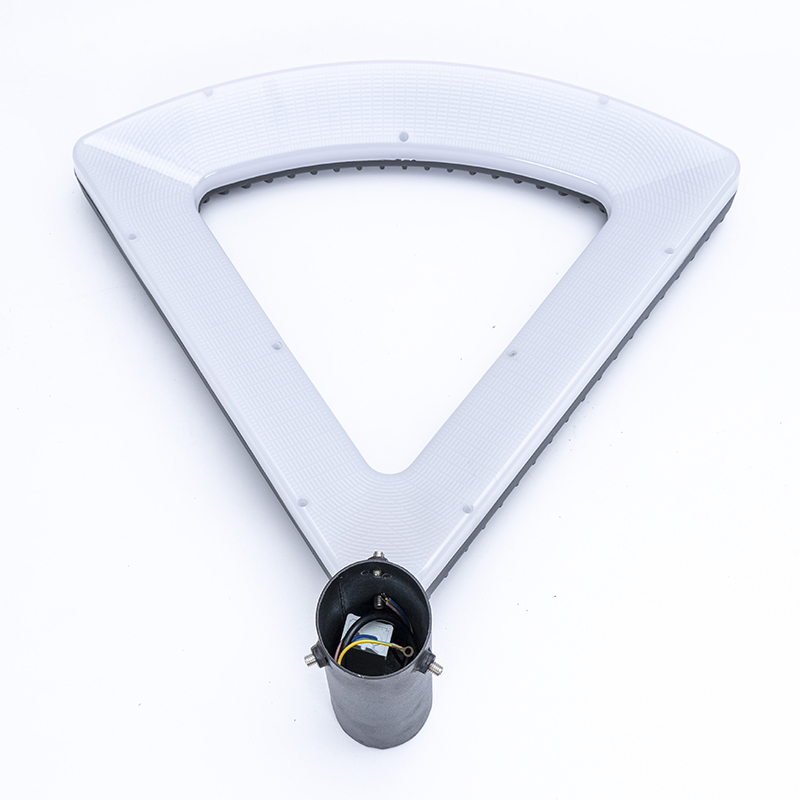

JHTY-8060 Professional waterproof outdoor LED courtyard light (4)

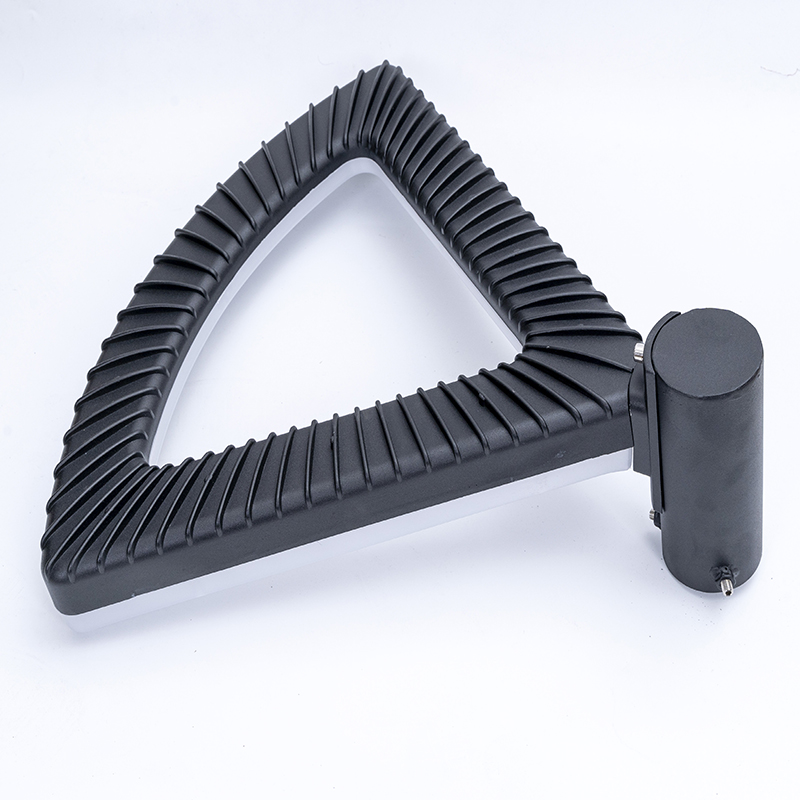

JHTY-8060 Professional waterproof outdoor LED courtyard light (5)

● The material of this product is aluminum and the process is aluminum die-casting.The internal reflector is a high-purity alumina, which can effectively prevent glare.The surface of the lamp is polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● The material of the transparent cover is PMMA or PC, with good light conductivity and no glare due to light diffusion. The color can be milky white or transparent, and the injection molding process is used.

● The light source is an LED module, which has the advantages of energy conservation, environmental protection, high efficiency, and easy installation.

● The rated power can reach 30-60 watts. And more wattage requirements can be customized

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● We have a strict quality control process and obtained the certificate of ISO9001-2015.We followed the principles of aesthetics, practicality, safety, and economy in product design.

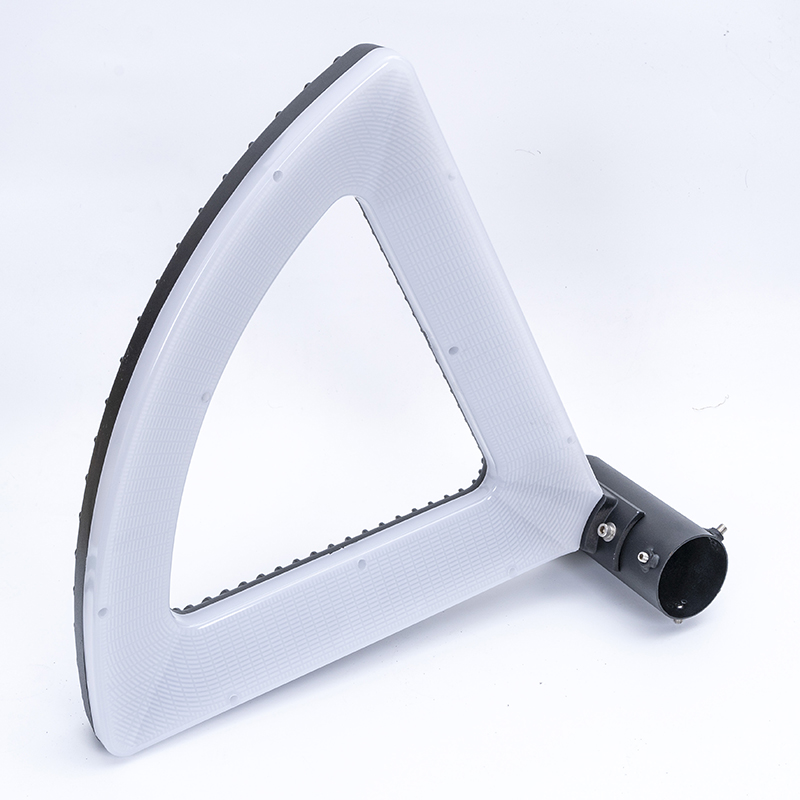

JHTY-8060 Professional waterproof outdoor LED courtyard light (2)

Technical parameters

Model	JHTY-8060
Dimension	Side length 420MM
Fixture Material	High-quality die-cast aluminum - A DC 12 lamp body
Lamp Shade Material	PMMA or PC
Rated Power	30W- 60W or Customized
Color temperature	2700-6500K
Luminous Flux	3300LM/6600LM
Input Voltage	AC85-265V
Frequency range	50/60HZ
Power factor	PF> 0.9
Color Rendering Index	> 70
Working Ambient Temperature	-40℃-60℃
Working Ambient humidity	10-90%
LED Life	>50000H
Protection Grade	IP65
Install Sleeve Diameter	Φ60
Applicable Lamp Pole	3-4m
Packing Size	430430350MM
Net weight(KGS)	3.25
Gross Weight(KGS)	3.75

Colors and Coating

In addition to these parameters, the JHTY-8060 LED Garden Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
