TYDT-7 Customized LED Garden Lights for Outdoor

Short Description:

TYDT-7 Courtyard light is a type of outdoor lighting fixture, usually referring to outdoor road lighting fixtures below 6 meters. Its main components are: light source, lamp, light pole, flange, and foundation embedded parts. Courtyard lights have the characteristics of diversity, aesthetics, beautification, and decoration of the environment, so they are also called landscape courtyard lights. Mainly used for outdoor lighting in urban slow lanes, narrow lanes, residential areas, tourist attractions, parks, squares, and other public places, it can prolong people’s outdoor activities and improve property and personal safety.

Send email to us

Product Detail

Product Tags

Product Description

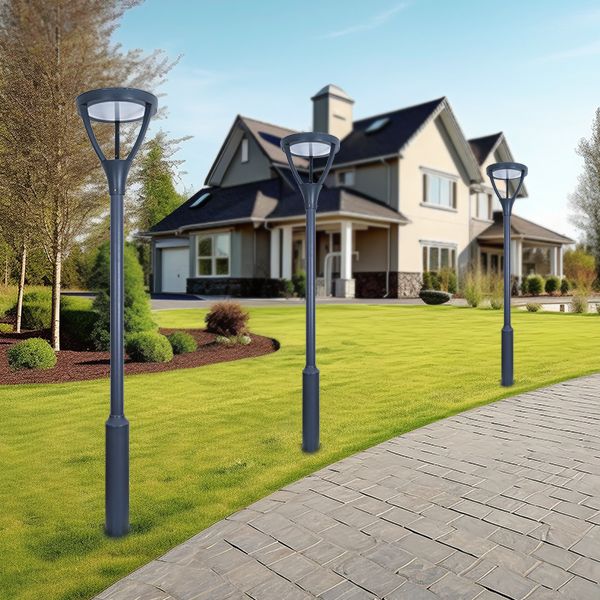

Day

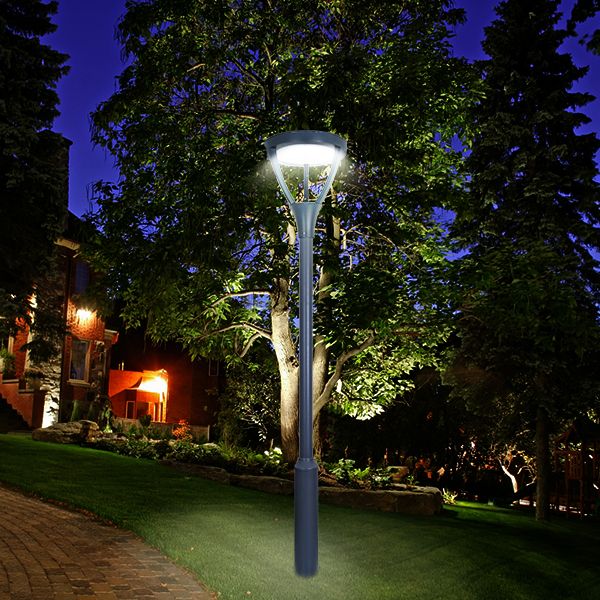

Night

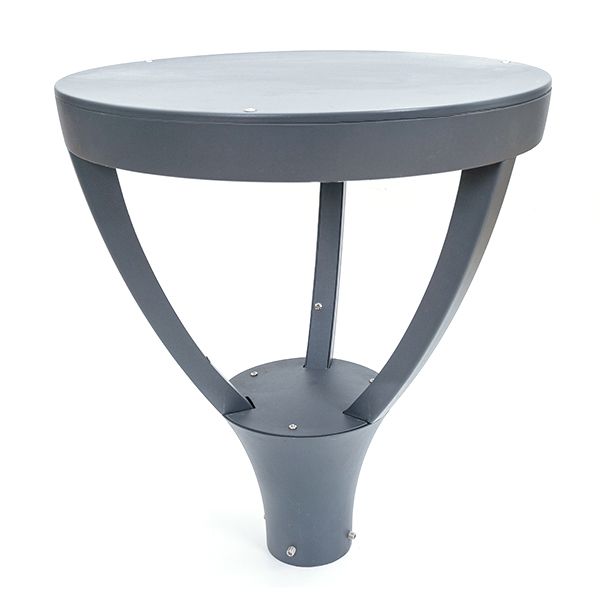

● This lamp has 3 pillars and garden lamp high-quality die-cast aluminum casing shell, excellent thermal radiation, optical and electrical capabilities. The surface with powder coating to anti-corrosion treatment.

● This LED garden light adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● The rated power can reach 30-60 watts, and more power can be customized. And it can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w. The light source is an LED module, with high-quality LED chips selected and equipped with internationally well-known brand drivers.

● It easy and simple installation, which is fixed to the lamp pole with a small number of sufficiently long bolts.

Technical parameters

Product Parameters
Product Code	TYDT-7
Dimension	Φ440mm*H490mm
Housing Material	High pressure die-casting aluminum
Cover Material	Tempering glass
Wattage	30W- 60W
Color temperature	2700-6500K
Luminous Flux	3600LM/7200LM
Input Voltage	AC85-265V
Frequency range	50/60HZ
Power factor	PF> 0.9
Color Rendering Index	> 70
Working Temperature	-40℃-60℃
Working humidity	10-90%
Life Time	50000 hours
IP Rating	IP66
IK	IK09
Installation Spigot Size	60mm 76mm
Applicable Height	3m -4m
Packing	450450350MM/ 1 unit
Net weight(kgs)	5.34
Gross Weight(kgs)	5.84

Colors and Coating

In addition to these parameters, the TYDT-7 Led Garden Light for back yard is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
