TYN-703 Solar integrated Garden Light with LED Light Source

Short Description:

Jinhui Lighting has sold several thousand solar garden lights around the world, changing the lives of over tens of millions of people. Solar garden lamps are independent of the grid and work even if the electricity supply is interrupted. Our Our TYN-703 is a solar integrated courtyard lamp that uses solar radiation as its energy source, without the need for complex and expensive pipeline laying, and is not limited by terrain. The layout of the lamp can be adjusted arbitrarily.

Send email to us

Product Detail

Product Tags

Product Description

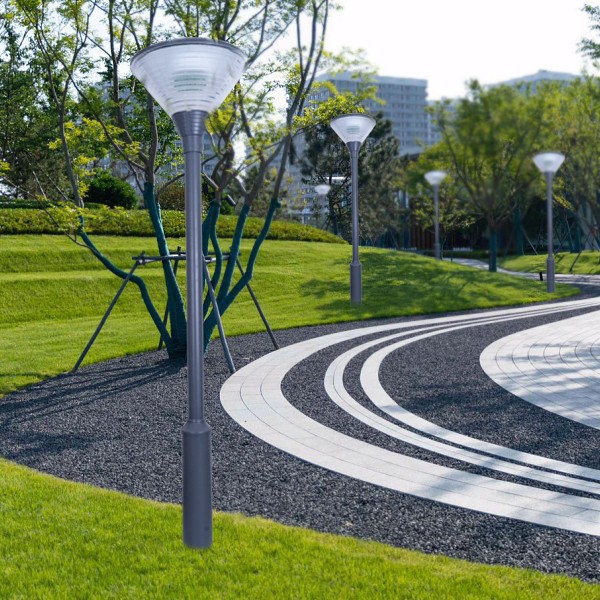

TYN-703 Solar integrated Garden Light with LED Light Source (8)

Day

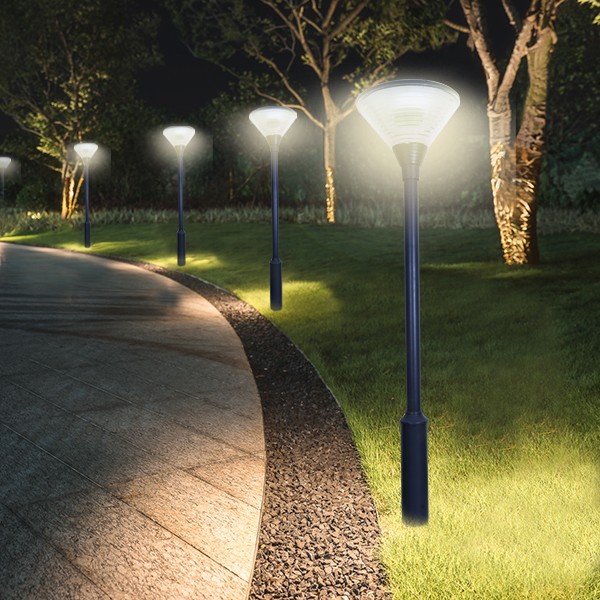

TYN-703 Solar integrated Garden Light with LED Light Source (7)

Night

● The lamp body of light made by aluminum and the process is aluminum die-casting. The surface treatment to be polished and pure polyester electrostatic spraying can effectively prevent corrosion.

● PMMA or PC is the material of the transparent cove, and there is a striped embossing process inside the transparent cover to effectively prevent glare.

● The color is transparent, and the injection molding process is used. The internal reflector is made of high-purity aluminum oxide, which can effectively prevent glare.

● The light source is an LED module, and its rated power can reach 6-20 watts, we are also can customize more watts. The advantages of LED source are energy conservation, environmental protection, high efficiency, and easy installation.

● The entire lamp adopts stainless steel fasteners, which are not easy to corrode. There is a heat dissipation device on the top of the lamp, which can effectively dissipate heat and ensure the service life of the light source.

● This decorative and good-looking courtyard light used for squares, residential areas, parks, streets, gardens, parking lots, urban pedestrian paths, etc.

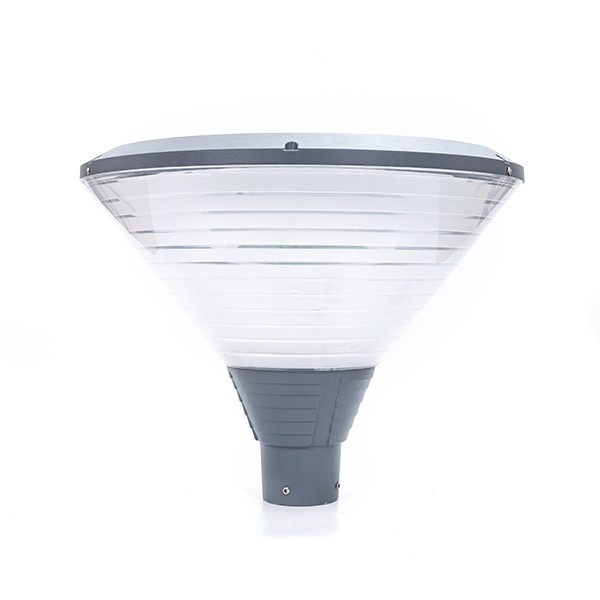

TYN-703 Solar integrated Garden Light with LED Light Source (4)

Technical parameters

Model	TYN-703
Dimension	W510*H510MM
Material of Housing	High pressure die-casting aluminum
Material of Transparent Cover	PMMA or PC
Solar Panel Capacity	5v/18w
Color Rendering Index	> 70
Battery Capacity	3.2v lithium iron phosphate battery 20ah
Lighting Time	Highlighting for the first 4 hours and intelligent control after 4 hours
Control method	Time control and light control
Luminous Flux	100LM / W
Color temperature	3000-6000K
Install Sleeve Diameter	Φ60 Φ76mm
Applicable Lamp Pole	3m-4m
Installation Distance	10m-15m
Certificates	IP65 CE ISO9001
Packing Size	520520520MM
Net weight(KGS)	5.2
Gross Weight(KGS)	5.7

Colors and Coating

In addition to these parameters, the TYN-703 Solar integrated Garden Light is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
